Precision Alloy Wire&Mesh, please note that the above table provides a range of standard thicknesses, widths, and lengths for Precision Alloy.
- Dimensions:
- Diameter: 0.05mm – 15mm
- Length: ≤ 12000mm
- Certification: ISO, SGS, BV and so on.
- *Customized size needs to be confirmed with us
- Shapes: Angle, Hexagon, Square, Channel, Round, Flat, etc.
- Grades: 1J22 soft magnetic alloy, 1J50 soft magnetic alloy, 1J79 Permalloy, 1J85 Permalloy, 4J32(Super-Invar), 4J36, 4J29Kovar alloy, 4J42Kovar alloy, Cobalt-based elastic alloy 3J21, 6026, 6J22, 50HXC.
Precision Alloy Wire Size And Specifications
Huaxiao Metal Supplier provides all sizes of Precision alloy wire for sale. Customized specifications are available upon request. Additionally, the exact chemical composition and mechanical properties may vary slightly within the ranges listed, depending on the specific alloy formulation and production process. Custom sizes are also available upon request. Welcome to inquire, and learn about more details about the alloy wire.
| Alloy Type | Size and Specifications | Chemical Composition (approx.) | Mechanical Properties |
|---|---|---|---|
| 1J22 | Diameter: Various (customizable) | Fe-based with Co addition for magnetic properties | High saturation magnetic induction, high permeability, low coercivity |
| (Exact composition depends on application) | |||
| 1J50 | Thickness: Various (customizable) | Fe: 80%-90%, Si: 3%-5%, Al: ≤1% | High permeability, low coercivity, good electrical resistivity |
| Width: Various (customizable) | Ni, Cu, Mo: Trace amounts | Low hysteresis loss | |
| 1J79 (Permalloy) | Thickness: 0.1~3mm | Ni: 78.5%80%, Fe: 13.73%16.8% | Density: 8.6 g/cm³, Electric resistivity: 0.55 ohm·mm²/m |
| Width: 5~250mm | C: 0.03%, Si: 0.3%0.5%, Mn: 0.6%1.1% | Curie point: 430°C, Saturation magnetostriction: 2×10^-6 | |
| S, P: ≤0.02%, Mo: 3.8%~4.1%, Ti, Al: 0.15%, Cu: 0.2% | Brinell hardness: 210/120 HB, Ultimate tensile strength: 1030/490 MPa | ||
| 1J85 | Diameter/Thickness: Various (customizable) | Fe-based with Si, Al, Ni, Cu, Mn, Mo additions | High permeability, low coercivity (similar to 1J50 but with composition variations) |
| Width: Various (customizable) | (Exact composition depends on application) |
Please note that the above specifications are typical and may vary slightly based on the manufacturer, production batch, and specific application requirements. For precise specifications and availability, it is recommended to consult with a supplier or manufacturer of Precision alloy wires. Huaxiao Metal Manufacturer also provides other shapes of Precision products, such as strip, sheet&plate, coil, bar, pipe&tube. The price is affordable and suitable.
What are the Benefits?
Precision alloy wire mesh offers a range of benefits that make it suitable for various applications. Precision alloy wire mesh offers a combination of high precision, excellent mechanical properties, corrosion resistance, thermal stability, magnetic properties, filtering and screening capabilities, customizability, and lightweight strength. These benefits make it a valuable material for a wide range of applications in various industries. Welcome to Huaxiao Metal Manufacturer to request the price, trust you can be satisfied in the alloy products and buy our products in quickly. Our services are in providing comprehensive and support to clients.
Precision Alloy Wire Applications and Uses
Huaxiao Metal Supplier provides all kinds of precision alloy wire in the world. Welcome to inquiry and ask for the price.
Electronics and Electrical Applications
- Magnetic Cores: Precision alloy wire, particularly those made from soft magnetic materials, is commonly used in the manufacture of magnetic cores for transformers, inductors, and other electrical components. These cores are essential for the efficient transfer and storage of electrical energy.
- Sensors and Actuators: Due to their precise magnetic and electrical properties, precision alloy wires are often used in sensors and actuators that require high sensitivity and accuracy.
Aerospace and Military Applications
- High-Temperature Stability: Precision alloy wires that exhibit high-temperature stability are ideal for use in aerospace and military applications, where components must withstand extreme temperatures and maintain performance.
- Lightweight and Strong: Precision alloy wires that are lightweight yet strong are used in the construction of aircraft and spacecraft components, contributing to overall weight reduction and improved fuel efficiency.
Medical Applications
- Implantable Devices: Precision alloy wires made from biocompatible materials are used in the manufacture of implantable medical devices, such as pacemakers and stents. These wires must be highly corrosion-resistant and biocompatible to ensure patient safety.
- Surgical Instruments: Precision alloy wires are also used in the construction of surgical instruments due to their strength, durability, and ability to maintain sharpness and precision.
Precision Alloy Wire Advantages
- High Precision and Accuracy:
- Precision alloy wire mesh is manufactured to exact specifications, ensuring high precision and accuracy in dimensions.
- This makes it ideal for applications where precise measurements and tolerances are critical, such as in electronic components, sensors, and precision instruments.
- Excellent Mechanical Properties:
- Precision alloy wire mesh often exhibits superior mechanical properties, including high tensile strength, yield strength, and hardness.
- These properties make it resistant to deformation and wear, ensuring long-term durability and reliability in demanding environments.
- Corrosion Resistance:
- Many precision alloy wire meshes are made from materials that are resistant to corrosion, such as stainless steel or nickel-based alloys.
- This resistance to corrosion extends the lifespan of the mesh and reduces the need for maintenance and replacement.
- Thermal Stability:
- Precision alloy wire mesh can maintain stable performance over a wide range of temperatures.
- This makes it suitable for applications in extreme environments, such as in aerospace, automotive, and industrial settings.
- Magnetic Properties:
- Some precision alloy wire meshes, such as those made from soft magnetic alloys, exhibit specific magnetic properties.
- These properties make them useful in applications involving magnetic fields, such as in electromagnetic shielding, sensors, and transformers.
- Filtering and Screening:
- Precision alloy wire mesh can be used as a filter or screen to separate particles, fluids, or gases based on size, shape, or other characteristics.
- This makes it useful in applications such as air filtration, water purification, and particle separation.
- Customizability:
- Precision alloy wire mesh can be customized in terms of size, shape, and material composition to meet specific application requirements.
- This flexibility allows for a wide range of potential applications and ensures that the mesh can be tailored to fit the needs of each unique situation.
- Lightweight and Strong:
- Precision alloy wire mesh is often lightweight yet strong, making it suitable for applications where weight reduction is important without compromising strength.

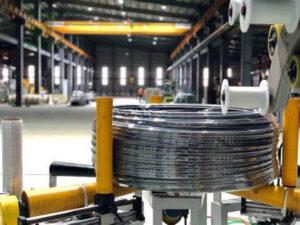

Alloy Factory
Huaxiao Metal Supplier provides professional services and reasonable prices, offering customers the best quality products. The Precision Alloy Wire Alloy Factory is a specialized manufacturing facility dedicated to the production of high-quality precision alloy wires. This factory combines advanced technology, rigorous quality control, and experienced personnel to ensure the production of precision alloy wires that meet the highest standards.The factory is equipped with state-of-the-art production equipment and machinery, capable of producing precision alloy wires with precise dimensions and consistent quality. Welcome to require, and ask to the price.
You ask, we answer
We can provide small precision alloy wire samples for you to check the quality. The sample is free, you only need to pay the shipping cost.
Precision alloy and titanium differ in composition, properties, and applications. Precision alloy is a specialized type of alloy material with various physical properties tailored for specific applications, while titanium is a lightweight, strong, corrosion-resistant metal widely used in aerospace, medical, and marine applications.
Precision alloy is a type of specialty alloy material that is engineered to exhibit precise and predictable physical properties. These alloys are designed for applications that require tight control over certain characteristics, such as magnetic, electrical, thermal, or mechanical properties.
