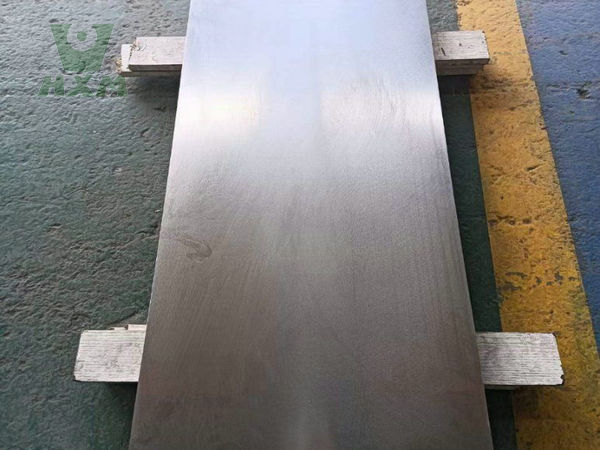

Inconel 600 Plate & Inconel 600 Sheet, please note that the above table provides a range of standard thicknesses, widths, and lengths for Inconel.
- Dimensions:
- Width: 50mm – 2800mm
- Length: 100mm – 12000mm
- Thickness: 0.2mm – 60mm
*Customized size needs to be confirmed with us
- Payment Term：L/C at sight, T/T, West Union ,
- Package：Export wooden pallets, Craft paper, Anti-Blushing Agent.
- Delivery Time: Future goods: Also 30 Work days, Ready Stock:7-15 days.

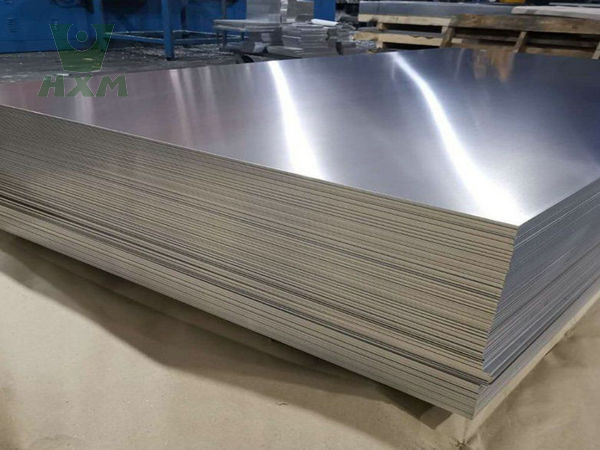

Inconel 600 Plate Size And Specifications
Inconel 600 Plate is a nickel-chromium alloy known for its excellent resistance to high temperatures, oxidation, and corrosion. It is widely used in industries such as aerospace, chemical processing, and power generation. Below is a detailed description of Inconel 600 plates and sheets, including their chemical composition, mechanical properties, physical properties, and applications. Huaxiao Metal Supplier provides all sizes of inconel alloy plate & sheet for sale. Customized specifications are available upon request. Additionally, the exact chemical composition and mechanical properties may vary slightly within the ranges listed, depending on the specific alloy formulation and production process. Custom sizes are also available upon request. Welcome to inquire, and learn about more details about the alloy plate.
Chemical Composition of Inconel 600 Sheet
Inconel 600 is primarily composed of nickel, chromium, and iron, with small amounts of carbon, manganese, and silicon. The typical chemical composition is as follows:
| Element | Composition (%) | Purpose/Effect |
|---|---|---|
| Nickel (Ni) | 72 min | Provides the base matrix, offering high strength and corrosion resistance. |
| Chromium (Cr) | 14–17 | Enhances oxidation and corrosion resistance, especially at high temperatures. |
| Iron (Fe) | 6–10 | Acts as a stabilizer and improves mechanical properties. |
| Carbon (C) | 0.15 max | Kept low to minimize carbide formation and maintain weldability. |
| Manganese (Mn) | 1.0 max | Acts as a deoxidizer and improves hot workability. |
| Silicon (Si) | 0.5 max | Improves oxidation resistance and fluidity during casting. |
| Copper (Cu) | 0.5 max | Minimized to avoid adverse effects on corrosion resistance. |
| Sulfur (S) | 0.015 max | Minimized to avoid hot cracking during welding. |
Inconel 600 Plate is primarily composed of nickel, chromium, and iron. The high nickel content provides excellent oxidation resistance and suits it for high-temperature applications. Chromium enhances its corrosion resistance, while iron improves strength and toughness. Trace elements such as carbon, manganese, silicon, copper, phosphorus, and sulfur play roles in grain refinement, strength enhancement, and ductility improvement.
Physical Properties
Inconel 600 has several notable physical properties that contribute to its performance in high-temperature and corrosive environments:
| Property | Value |
|---|---|
| Density | 8.47 g/cm³ (0.306 lb/in³) |
| Melting Point | 1354–1413°C (2470–2580°F) |
| Thermal Conductivity | 14.9 W/m·K (at 100°C) |
| Electrical Resistivity | 1.18 µΩ·m (at 20°C) |
| Specific Heat Capacity | 444 J/kg·K (at 20°C) |
| Modulus of Elasticity | 214 GPa (31,000 ksi) |
With a density of approximately 8.42 – 8.47 g/cm³, Inconel 600 is relatively heavy among metallic materials. Its melting point range of 1350 – 1425°C indicates good high-temperature stability. The thermal conductivity increases with temperature, showing a relatively low thermal expansion characteristic, suitable for high-temperature applications.
Mechanical Properties
Inconel 600 exhibits excellent mechanical properties, making it suitable for a wide range of applications:
| Property | Value |
|---|---|
| Tensile Strength | 550–760 MPa (80–110 ksi) |
| Yield Strength | 240–410 MPa (35–60 ksi) |
| Elongation | 30–40% |
| Hardness (Rockwell B) | 65–95 HRB |
| Density | 8.47 g/cm³ (0.306 lb/in³) |
| Melting Point | 1354–1413°C (2470–2580°F) |
Inconel 600 exhibits outstanding mechanical properties across a wide temperature range. It maintains good mechanical strength at both high and low temperatures. For instance, at room temperature (20°C), its yield strength is 240 MPa and tensile strength is 550 MPa, with a ductility of 40% (in terms of elongation at break). Even at temperatures as high as 700°C, its yield strength remains around 140 MPa.
Aspect Comparison and Analysis
- Corrosion Resistance: Inconel 600 demonstrates exceptional corrosion resistance in both oxidizing and reducing environments, as well as in alkaline solutions. It is highly resistant to chloride ion stress corrosion cracking.
- High-Temperature Performance: It maintains strength and stability at high temperatures, with satisfactory thermal strength and plasticity even at 700°C or higher. Its creep rupture strength ensures stable operation in high-temperature applications such as nuclear reactors.
- Weldability: Inconel 600 has good welding performance and can be joined using various methods such as arc welding, argon arc welding, resistance welding, and brazing. Stress relief annealing at 870°C for 1 hour is recommended after welding large or complex structures to eliminate welding stresses.
Warning: Edges are sharp. The sheets have been cut to fit the impact shears, and the edges are not deb. Surface scratches cannot be ruled out. The item photo is a theoretical photo, and the cut delivered may vary. Inconel 600 is a hightemperature nickel-chromium-iron alloy. It also contains about 1.5% cobalt and about 1% manganese.
Its quality is impressive at low temperatures at high temperatures up to 1050°C, with good mechanical properties. In addition, it has very high heat resistance and corrosion resistance. This material shows resistance to chlorine and hydrogen chloride up to about 500-550°C. 2.4816 also has good resistance in embroidery orburizing environments and is resistant to stress corrosion cracking. The advantages cannot be cured. Inconel 600 is mainly used in the construction of industrial furn. The furnace shell, transport rolls, and seals of the muffle furnace are made of this material. In the chemical industry, 2.4816 used to manufacture factory parts that are very suitable for the production of chlorine and fluorine compounds.
Other applications of alloy 600 include: Factory parts for the of chlorine, hydrogen chloride, and fluorine; Automobile (HT sensor; Airbag burst disc); Production (reactor, heat exchanger); atalytic generator Inconel 600 has the following characteristics: Good resistance to rust, carburization, and oxidation media; Good resistance to acidsacetic acid, formic acid, fluorine, and fatty acids), ammonia, chlorine, and hydrogen chloride (up to about 500°C); Good resistance stress corrosion cracking; Good mechanical properties over a wide temperature range; Resistance in reducing environments.
What are the Benefits?
Inconel 600 plates in construction offer significant benefits, including excellent corrosion and high-temperature resistance, high strength and ductility, good weldability, and versatility for use in a wide range of demanding environments. Their durability and ability to maintain performance over time reduce maintenance requirements and ensure structural integrity, versatility in applications that make them an excellent choice for use in construction. Welcome to Huaxiao Metal Manufacturer to requset the price, trust you can be satisfied in the alloy products. Inconel 600 Sheets are useful in daliy life and various industries.
Inconel 600 Sheet Fabrication and Machining
Inconel 600 Sheet can be fabricated using standard techniques, but its high strength and work-hardening tendency require special considerations:
| Fabrication Process | Details | Challenges |
|---|---|---|
| Welding | – TIG, MIG, and plasma arc welding are commonly used. – Post-weld heat treatment is often required to relieve stresses. | – Susceptibility to hot cracking. – Requires matching filler metals. |
| Machining | – Requires carbide or ceramic tools. – Slow speeds and high feed rates. – Coolants are essential to prevent overheating. | – High work hardening tendency. – Tool wear due to toughness. |
| Forming | – Can be cold or hot formed. – Hot forming is preferred for complex shapes. | – High strength makes forming difficult. – Risk of cracking during bending. |
| Heat Treatment | – Solution annealing at 1010–1120°C (1850–2050°F) followed by rapid cooling. | – Precise temperature control is required to achieve optimal properties. |

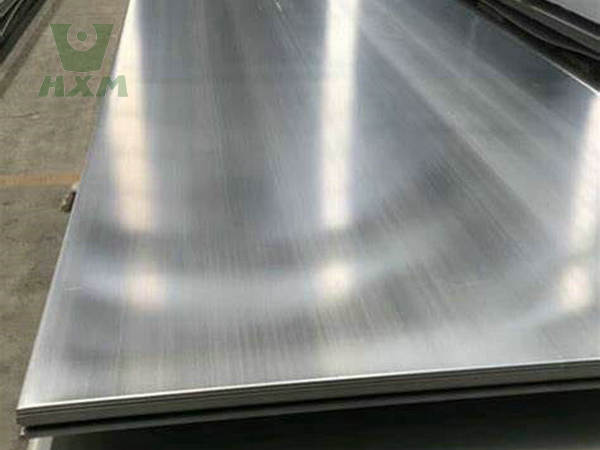

Inconel 600 Plate Applications and Uses
Huaxiao Metal Supplier provides all kinds of inconel alloy plate and sheet in the world. Welcome to inquiry.
Inconel 600 plates and sheets are used in a variety of demanding applications due to their combination of strength and corrosion resistance:
| Industry | Applications |
|---|---|
| Aerospace | Turbine blades, exhaust systems, and rocket motors. |
| Chemical Processing | Reactors, heat exchangers, and piping systems. |
| Power Generation | Gas turbines, nuclear reactors, and boiler components. |
| Heat Treating | Furnace components, muffles, and heat shields. |
| Electronics | Heating elements and thermocouples. |
Inconel 600 Plate Advantages
Corrosion Resistance
Inconel 600 Plate offers excellent corrosion resistance in a wide range of environments:
Oxidizing Environments: High chromium content provides resistance to oxidation and scaling at high temperatures.
Reducing Environments: Performs well in reducing environments, such as those containing sulfuric and phosphoric acids.
Stress Corrosion Cracking (SCC): Resistant to SCC in chloride and sulfide environments.
Advantages and Limitations
| Advantages | Limitations |
|---|---|
| – Excellent high-temperature strength. – Good oxidation and corrosion resistance. – Versatile in fabrication. | – Susceptible to stress corrosion cracking in chloride environments. – Expensive compared to stainless steels. – Difficult to machine and form. |

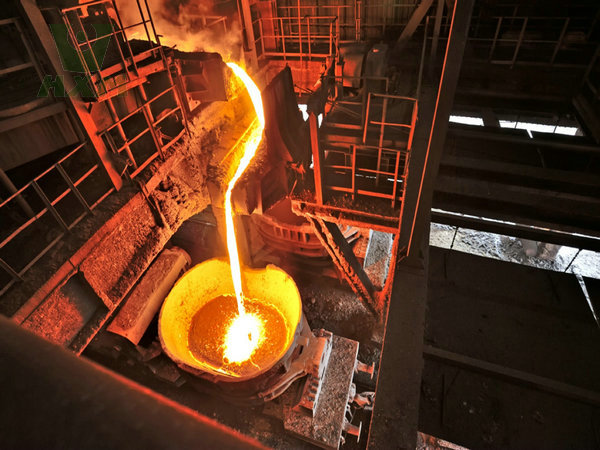

Alloy Factory
Huaxiao Metal Supplier provides professional services and reasonable prices, offering customers the best quality products. The Inconel 600 Plate Alloy Factory is a specialized manufacturing facility dedicated to the production of high-quality Inconel alloy plates. This factory combines advanced technology, rigorous quality control, and experienced personnel to ensure the production of Inconel alloy plates that meet the highest standards.The factory is equipped with state-of-the-art production equipment and machinery, capable of producing Inconel alloy plates with precise dimensions and consistent quality.Welcome to reqiure, and ask to the price.

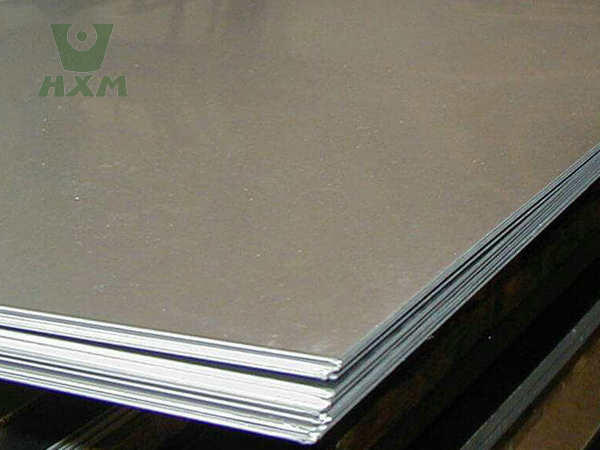

In Conclusion
Inconel 600 plates are high-performance nickel-chromium alloys that offer excellent corrosion resistance, high-temperature strength, and versatility in demanding environments. They are widely used in industries such as aerospace, chemical processing, and power generation. While they offer numerous advantages, including superior mechanical properties and corrosion resistance, they also present challenges in machining and heat treatment. Understanding these characteristics is crucial for selecting the right material for specific applications, ensuring optimal performance and cost-effectiveness. Huaxiao Metal Supplier is the top of alloy supply in China, which our company is reliable and creditable, the alloy products is good quality and the delievery is fast, the services is best customerized for you.
In conclusion, Inconel 600 Plate & Sheet is a high-performance nickel-chromium-iron-based solid-solution strengthened alloy with a combination of excellent chemical composition, mechanical properties, and physical properties. Its versatility makes it suitable for various demanding applications in industries such as aerospace, chemical and petrochemical, and energy. Welcome to inquiry and ask for the lastest price about inconel 600 plate or other products.
